Dotfun Agents Platforms

Multi-tenant agent factory on EKS — GitOps provision, in-cluster mesh, DNS at the edge.

Thousands

concurrent isolated agents

1 chart, N apps

Helm + Argo CD API

ExternalDNS

Cloudflare records, no tickets

HPA 5–50

control plane on the same cluster

Overview

Dotfun Agents Platforms let anyone create an AI agent from a persona, turn it on, and get a live instance with its own public URL. Agents could chat, post, and bind Twitter, Telegram, or Discord. Activation was credit-gated: pay to run, deactivate to tear the instance down.

Users did not wait on a ticket or a shared bot. Each request became an isolated Kubernetes workload. I designed and ran the path from “user clicked Create” to a healthy, addressable agent — and the reverse on deactivate. I sat with backend so the NestJS control plane could drive Argo CD as an API, not as a console. Control plane and agents ran on the same EKS cluster. The API talked to pods over ClusterIP. Public traffic went Ingress → Cloudflare.

The problem

Thousands of tenants only works if create and destroy are APIs, not git commits and DNS tickets. Without that, the factory becomes a queue.

A git commit per agent would storm the GitOps repo as tenant count grew
Hand-rolled DNS and TLS would not keep up with unique hostnames
A shared bot or a ticket-based provisioner would not isolate noisy neighbors
If the control plane sat off-cluster, readiness, character push, and chat would depend on the public edge
Deactivate that does not prune Ingress and DNS leaks compute and records
Credits had to map to real CPU and memory or the cluster is an open fork-bomb

The solution

Two planes, one cluster. The NestJS API is a GitOps app. Each agent is an Argo CD Application pointing at one shared Helm chart. No per-agent YAML in git. Desired state in Argo, cluster as the source of truth, APIs as the user-facing trigger.

Control

NestJS API — users, credits, character store, activate/deactivate. Kustomize, ECR, HPA 5–50

Data

One ElizaOS process per agent. Argo CD Application per tenant, same cluster

Provision

API POSTs an Argo Application with a service token; automated sync, prune, self-heal

Helm

Shared eliza-agent chart. Per-tenant name, id, image, backend URL. ClusterIP Service; Ingress is the only public door

Runtime

On the order of 2 CPU / 2–3Gi, probes on :3000, rolling update maxUnavailable: 0. Character JSON pulled on boot

DNS

Ingress host {slug}.<zone> → ExternalDNS → Cloudflare. Prune Ingress, record goes away

Edge

Wildcard TLS, nginx terminates HTTPS, Cloudflare in front

OIDC → Secrets Manager → ECR → Argo image set. Same GitOps model as the agents

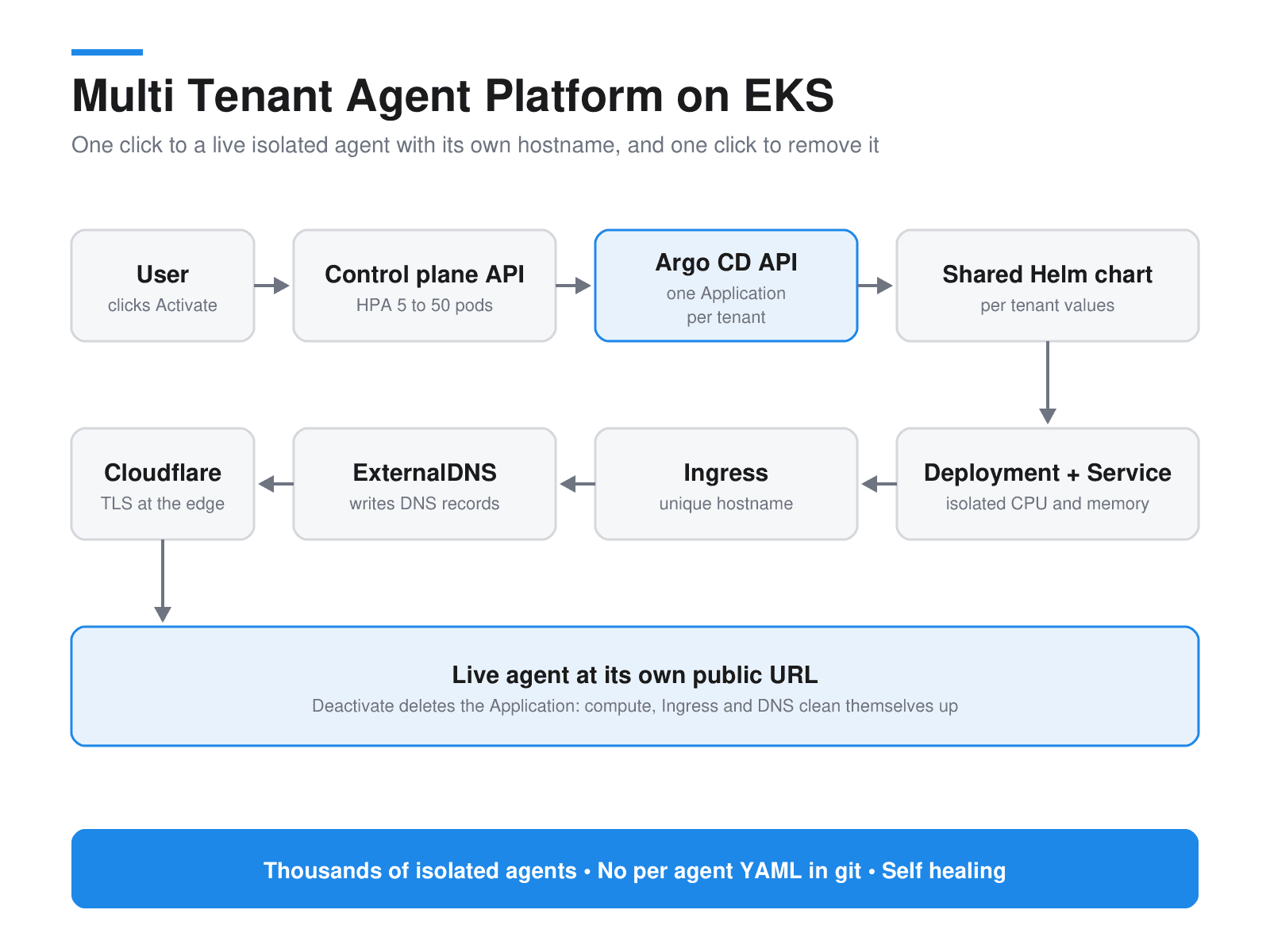

Architecture

lifecycle.txt

Create (metadata + credits)
  → Activate
      → Argo Application (Helm)
      → Deployment + Service + Ingress
      → ExternalDNS → Cloudflare
      → Pod boot → pull character → POST runtime id
      → ACTIVE (in-cluster + public URL)
  → Live: chat, social bind, character patch via ClusterIP
  → Deactivate
      → DELETE Application
      → prune workload + Ingress
      → ExternalDNS drops Cloudflare record

What I implemented

Path from activate to a healthy, addressable agent — and teardown on deactivate
Backend integration so NestJS drives Argo CD as an API (Application CR, service token), not a console
Shared Helm chart with per-tenant params; automated sync, prune, and self-heal — no per-agent YAML in git
Same-cluster placement: API polls readiness, pushes character updates, and proxies chat over ClusterIP / in-cluster DNS
ExternalDNS watching Ingress so unique FQDNs appear and disappear in Cloudflare with the tenant
Wildcard TLS at nginx; Cloudflare at the edge
Control plane GitOps: OIDC to AWS, ECR, kustomize overlays, HPA 5–50 so the API can absorb activate/status/chat at tenant scale
Credit gate mapped to real CPU/memory so unused agents do not sit on the cluster

Results

Thousands of concurrent agents, each with its own hostname, TLS, and runtime
Isolation: one Deployment / Service / Ingress / DNS name per tenant — noisy neighbor stays in its slice
No git storm: Applications created via API; the chart stays one repo path
Teardown is cheap: delete Application; prune and ExternalDNS reclaim compute and DNS
In-cluster control loop: readiness and config do not depend on the public edge
Self-heal: Argo reapplies drift; agents come back with the same hostname

Stack

AWS EKSArgo CDHelmKustomizeExternalDNSCloudflarenginx IngressNestJSElizaOSGitHub Actions
